Sportsolar

SPORTSOLAR SOLKAV

You can also ice-skate on a clever sports ground and heat the pool with a clever swimming pool walk around path from SOLKAV

SOLAR | SWIMMING POOL WARMING

Sports solar - solar in the ground

The energy concept

Our "All In One" energy concept expands your individual solution (swimming pool, ice skating, heating, etc.) through systematic simultaneous use of the "waste energy" and expansion to the year-round thermal energy requirement (heating, air conditioning, domestic water, etc.) to an integrated one , investment superior in profitability. Then the sun actually shines for free.

Possible applications

The development of SPORT SOLAR - the patented walkable and playable solar absorber - gives the user completely new application possibilities. Wherever there is not enough roof space to - The walk-on solar absorber! Laying. The absorber mats are glued to the prepared surface, the spaces between the tubes are filled with a precisely mixed glue-granulate mixture. In the last step, binding agent is applied and the coloring granulate is scattered. The installation is carried out by trained SOLKAV staff or authorized partners. Hygiene properties - the anti-slip property in wet barefoot areas for application areas A B C according to DIN 51907 is given.

In terms of hygienic and technological aspects, SPORT SOLAR fulfills all physical and chemical criteria according to the requirements of the Federal Health Office. Cleaning is only carried out with a pure water jet and, if necessary, disinfectant. Is available or the installation of a solar system was previously impossible for optical or technical reasons, SPORT SOLAR is the patent solution with multiple uses.

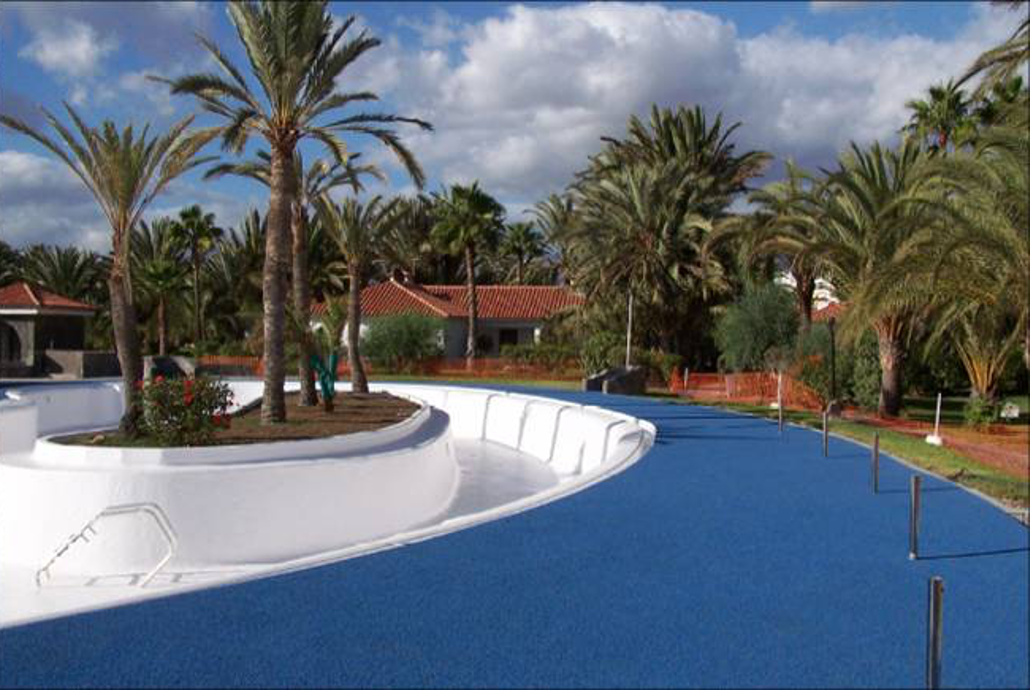

...as walk around path for the pool:

SPORT SOLAR has a non-slip elastic surface, reducing the risk of falls and accidents considerably. As new or replacement investment SPORT SOLAR reduces the relatively high costs of an orthodox walk around path with the advantage of being adaptable to any shape of pool.

Of course SPORT SOLAR physical and hygienic characteristics fulfil all legal requirements. the product also requires very little care and attention.

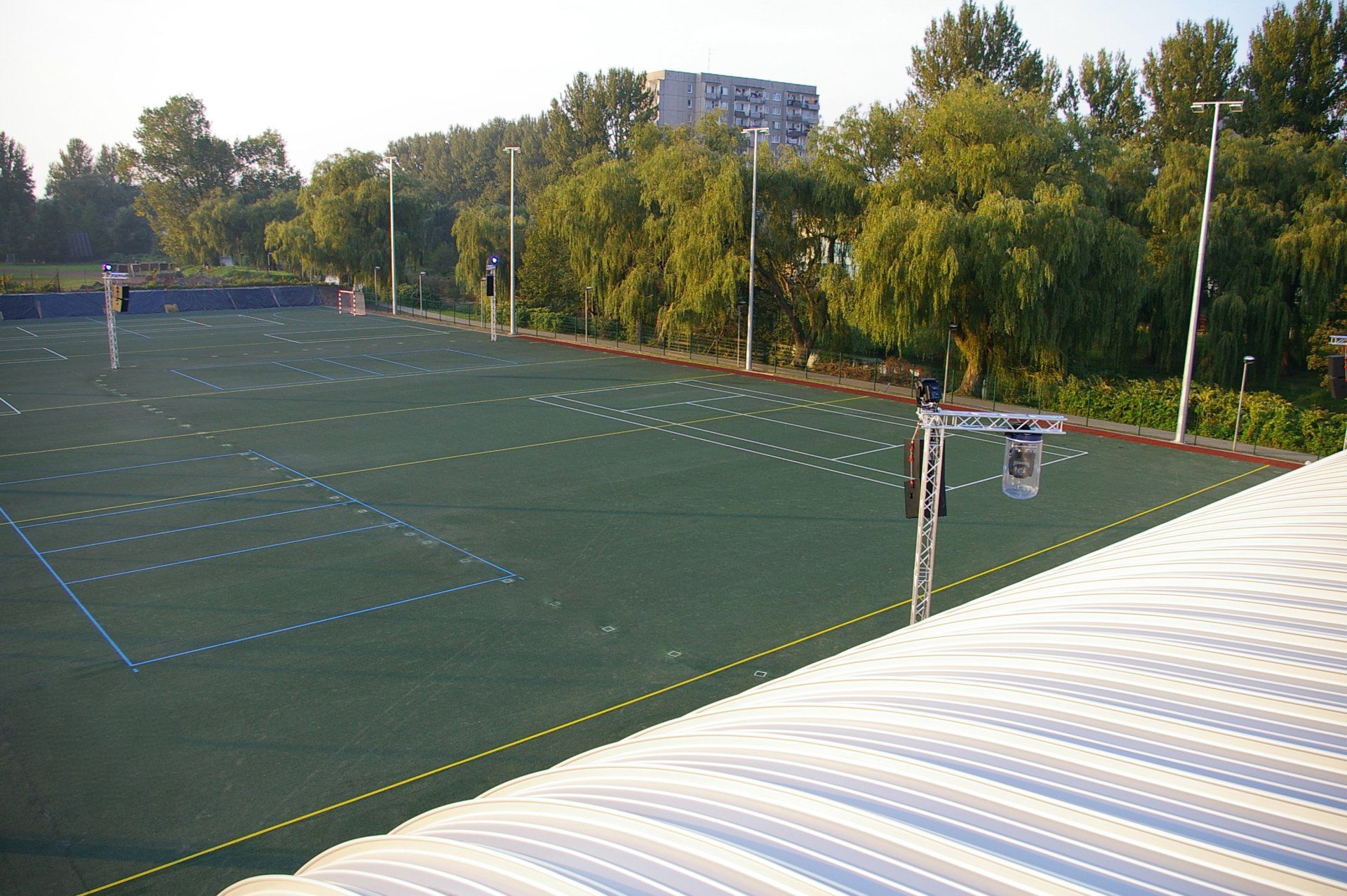

…as multi-functional sports ground:

By using different granule mixtures and colours you can design a ball game court which is impervious to water in various tones and degrees of hardness. The non-slip hard wearing surface supplies heating energy for your pool and/or infrastructure in a most attractive and space-saving form.

To increase attractivity and customer frequency you can use the SPORT SOLAR surface additionally in winter as an…

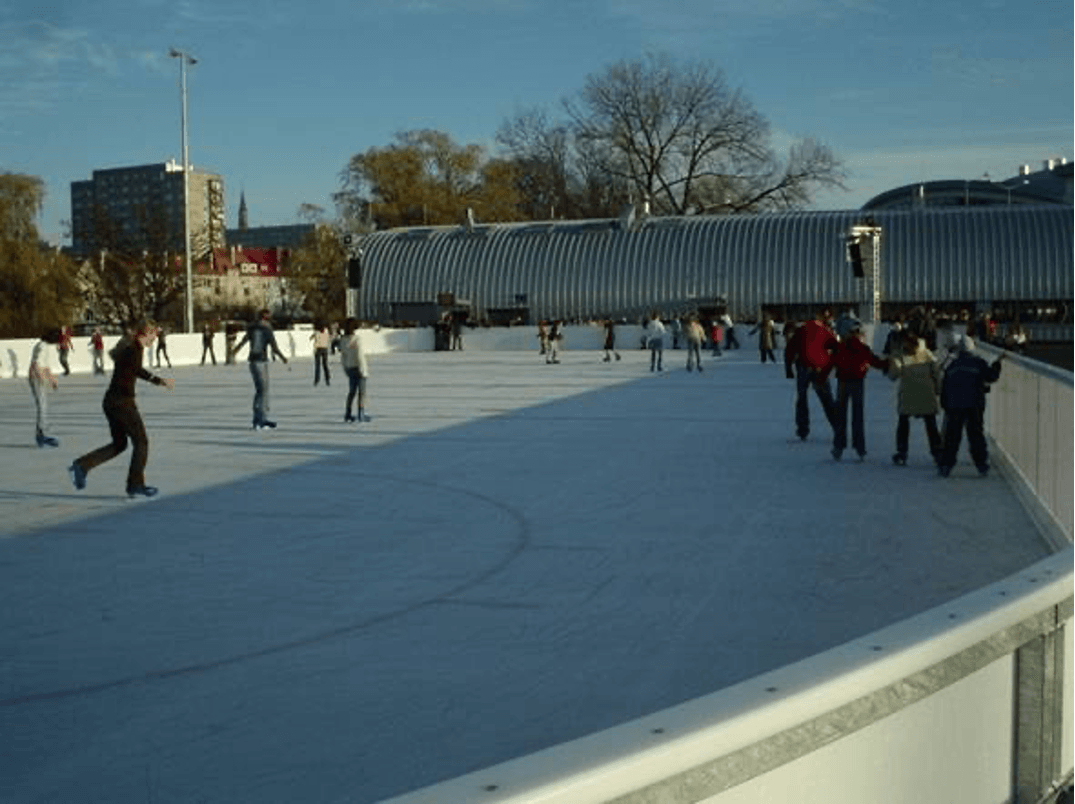

... as ice rink with triple benefit:

If you plan and organize sporting events and are looking for an exceptional product, SPORT SOLAR offers you all-seasons utilization – in summer as multi-functional sports ground with additional solar absorber capacity - and in winter as an ice rink with the two-circuit-system without environmental risky substances.

The walk-on solar absorber!

With SOLKAV and SPORT SOLAR you can increase the profitability of your system not only through multiple but also through simultaneous use by:

By precisely determining the entire

Energy requirements and the corresponding

individual application for decades

tried and tested SOLKAV absorber technologies in

Connection with heat / cold pump technology and

integrated SOLKAV thermal management

You can reach the controller with optimal utilization

the available energy amortization times of the S.

System from 3.5 years.

More than 10,000 systems installed according to the SOLKAV principle for over 20 years speak for themselves!

Material characteristics

The solar absorbers are made of Ethylene-Propylene-Diene- Monomere (EPDM), a high-grade vulcanized synthetic caoutchouc with right-angled sealing tracks. The result is a certified collector efficiency of ETA 0 (h0) 81.1 % according to ÖNORM M7720.

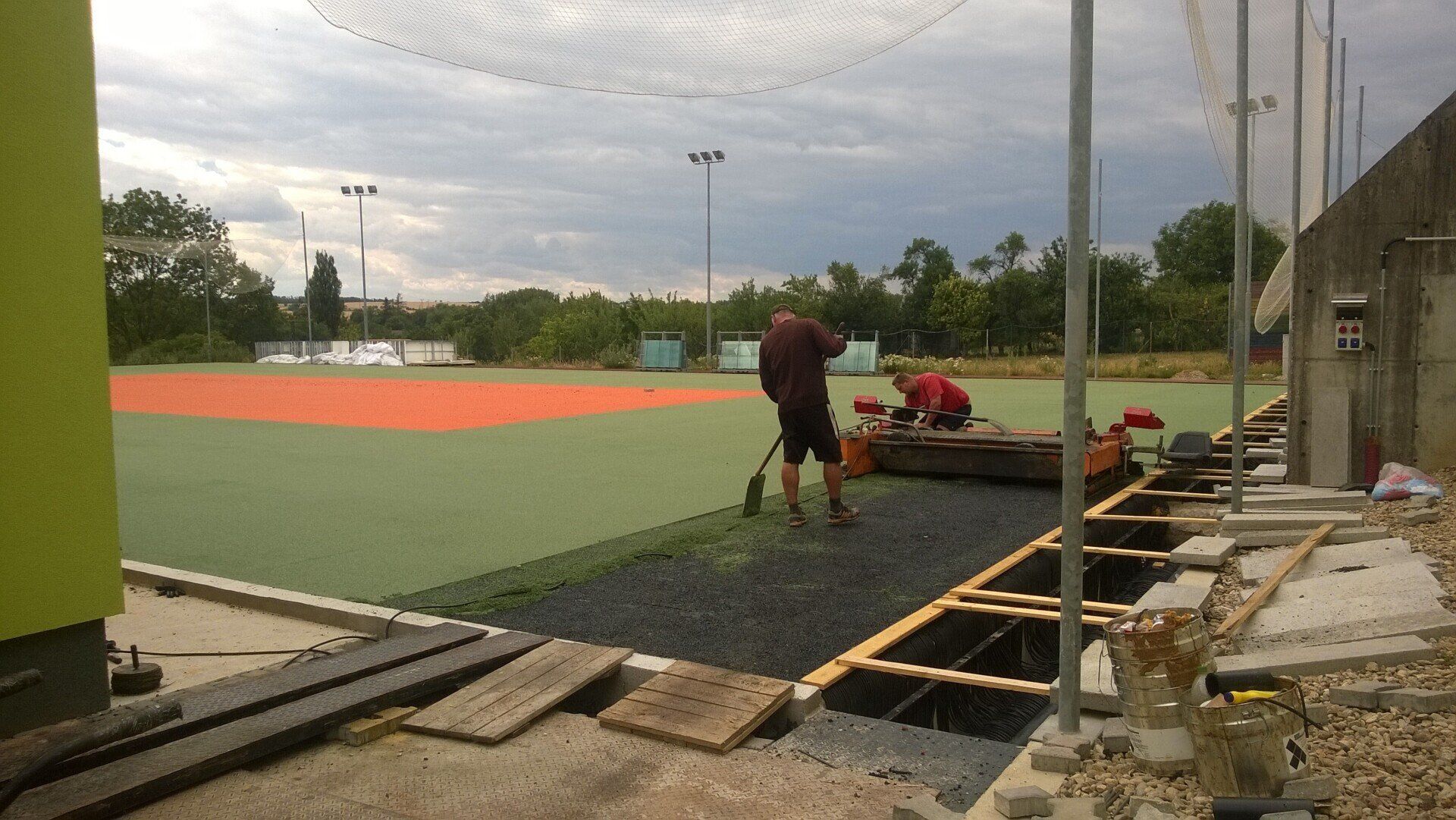

Installation

The absorber mats are glued to the prepared subsurface, the spaces between the tubes are filled with a precisely mixed adhesive and granulate mixture. In the last step, the binder is applied and the coloring granules are sprinkled in. The installation is carried out by trained SOLKAV staff or authorized partners.

Principle

The heat transfer medium water or water/glycol mixture flows through the mats in one direction or in the opposite direction in the case of the 2-circuit system. The amount of heat absorbed by the heat transfer medium can be used either directly (swimming pool heating) or indirectly via downstream units (heat pump).

Hygiene characteristics

The anti-slip property in wet barefoot areas for the application areas A+B+C according to DIN 51907 is given. In terms of hygiene and technology, SPORT SOLAR meets all the physico-chemical criteria according to the

Federal Health Office requirements. Cleaning is only done with a pure water jet and, if necessary, disinfectant.
