SOLKAV Sport ice rink Solutions

Adventure ice rinks as a purchase and rental option

ICE

Ice rinks

Our flexible product range

Your size | Your design

The start of any decision about technology of an Ice Rink is

The Location to put

The design is completely variable.

Standard is of course a rectangle design (1:2); with curves or edges: 10 x 20, 15 x 20; 15 x 30; 20 x 30, 20 x 40. Ellipse or round ice Rinks are also possible. The more the design differs from standard size the more efforts have to be done to customize. Columns in the Ice Rink can be integrated.

About Budget,

Please see the Rule: The smaller the better. Worst case is an Ice Rink without skaters. Full Ice Rinks create a band waggon effect to join, but this works also the other way around! You can calculate per 3 m² one visitor at the same time to see capacity.

For short time Rental you need good Ice and all visual things shall be fine! Board, Skates, Location itself. All other like Machine Ice resurfacing is luxury and does not pay off usually. Our systems are ready for Plug and Play; easy to install.

Button
Button

Revenue sources are:

1. Tickets of course (incl. or with separate charge for skates)

2. Sponsoring or advertisement plates

To get a full Ice rink sponsor (e.g. Telekom, “CocaCola”, Electricity company) is of course best. You can also combine big sponsors for each barrier side (so max. 4). Most complicated is to sell each 2m panel. But anyhow it takes time. So please start in time.

Cost drivers are

1. Land itself (in shopping malls the alternative earnings via. Having an attraction more and a return from visitors (without use); outdoor to get Land for free.

2. Electricity: an 450 m² Ice rink may consume from 2.000 – 4.000 Euro per month (depending on price, indoor – outdoor, etc.). depending on ice field typos it even differs by 20%. Having a sponsor helps a lot.

3. Beneath purchasing price and rental cost: Keep infrastructure like underfloor under control.

For these five points you shall have for 3 a favourable solution; otherwise you never get back your investment.

Packages

We offer the following packages for rent, ready for plug & play and in all relevant sizes:

Content

Consisting of

Systems

All systems are visually perfect:

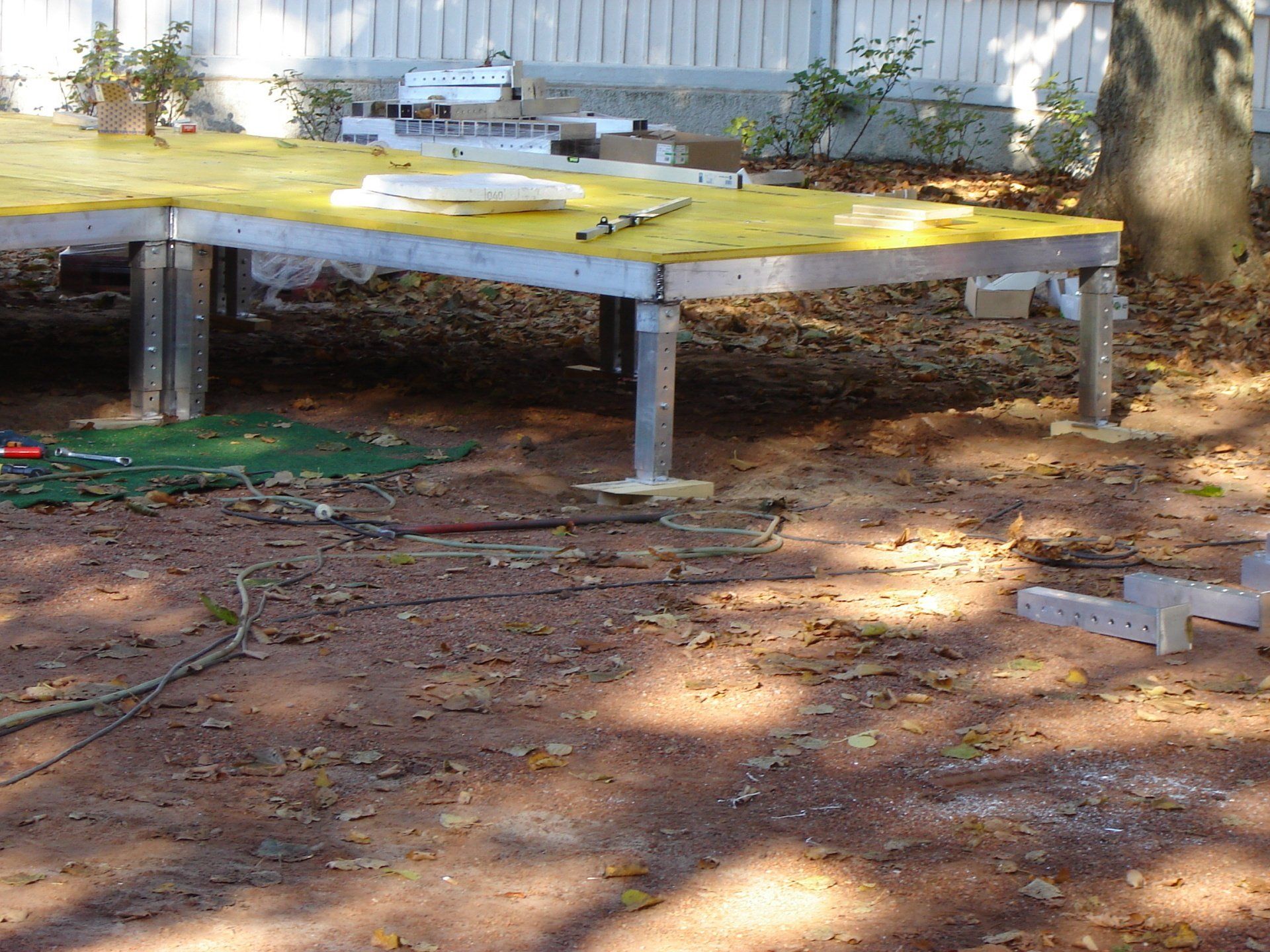

The packages are complete, ready to install on underground (either flat from nature, or platform or sand sheeting necessary). We install or send just an instructor.

Ask us for your individual offer and help to set up the right Ice Rink size, the right location, the infrastructure around!

Button
Button
Button
Button

Surcharges

Button
Button
Button

Ice Field

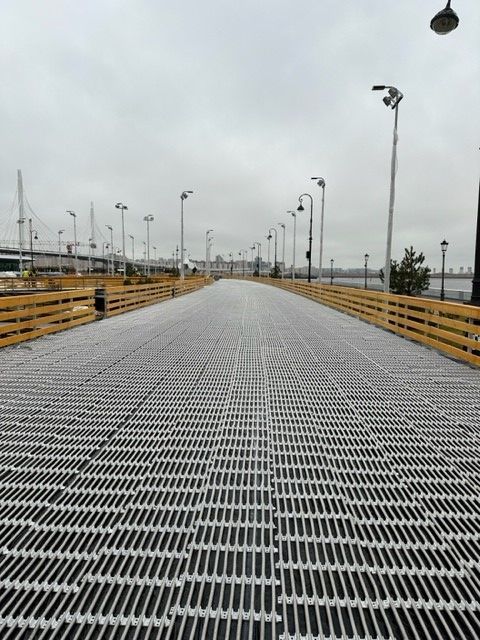

EPDM black or white, ALU Star or Sport surface?

We can offer may versions for ice fields and advice you about the optimal surface for PERMANENT Leisure Ice Rinks (mobile or fixed installed).

The difference is one hand in the consumption of electricity versus investment:

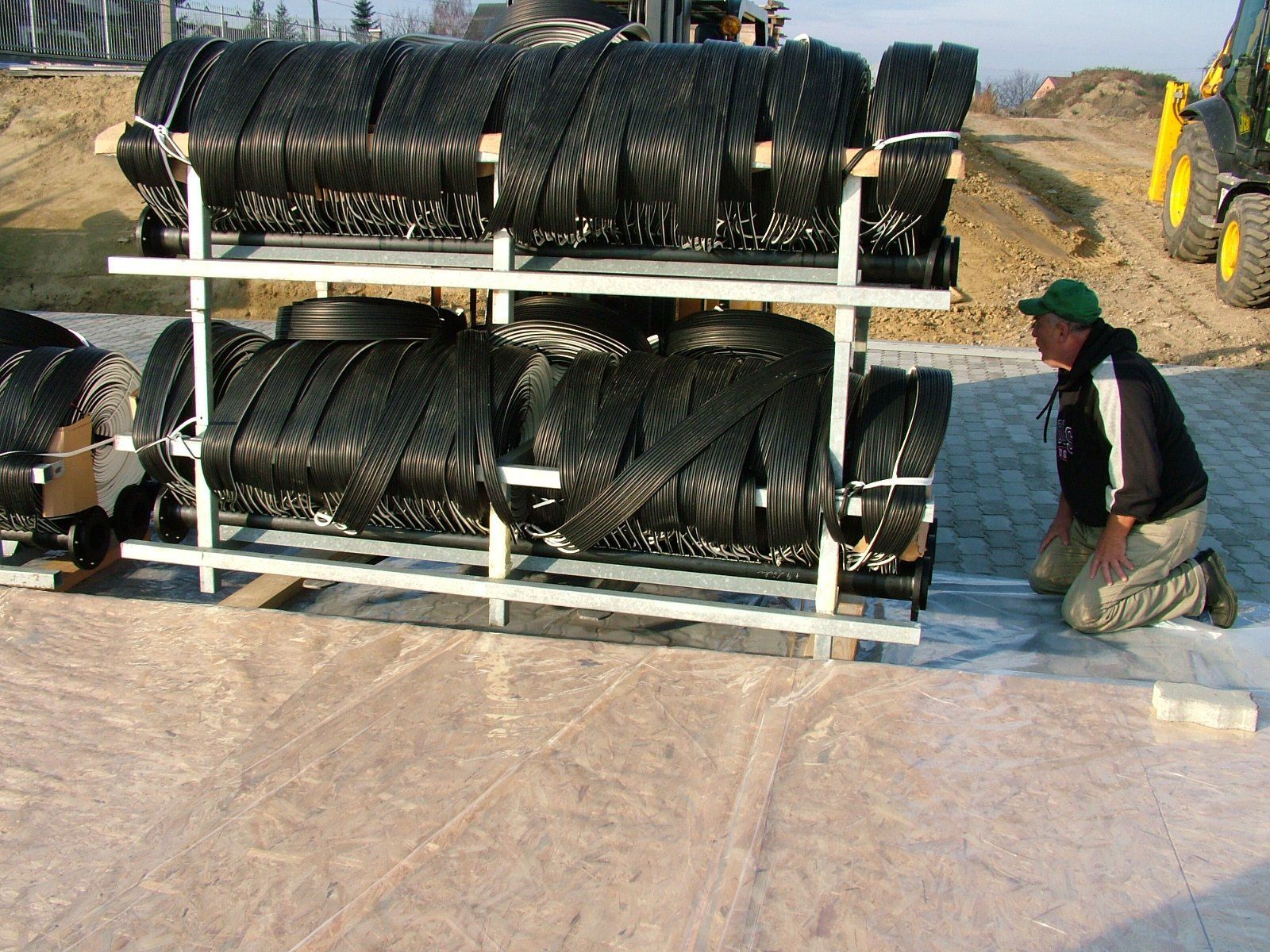

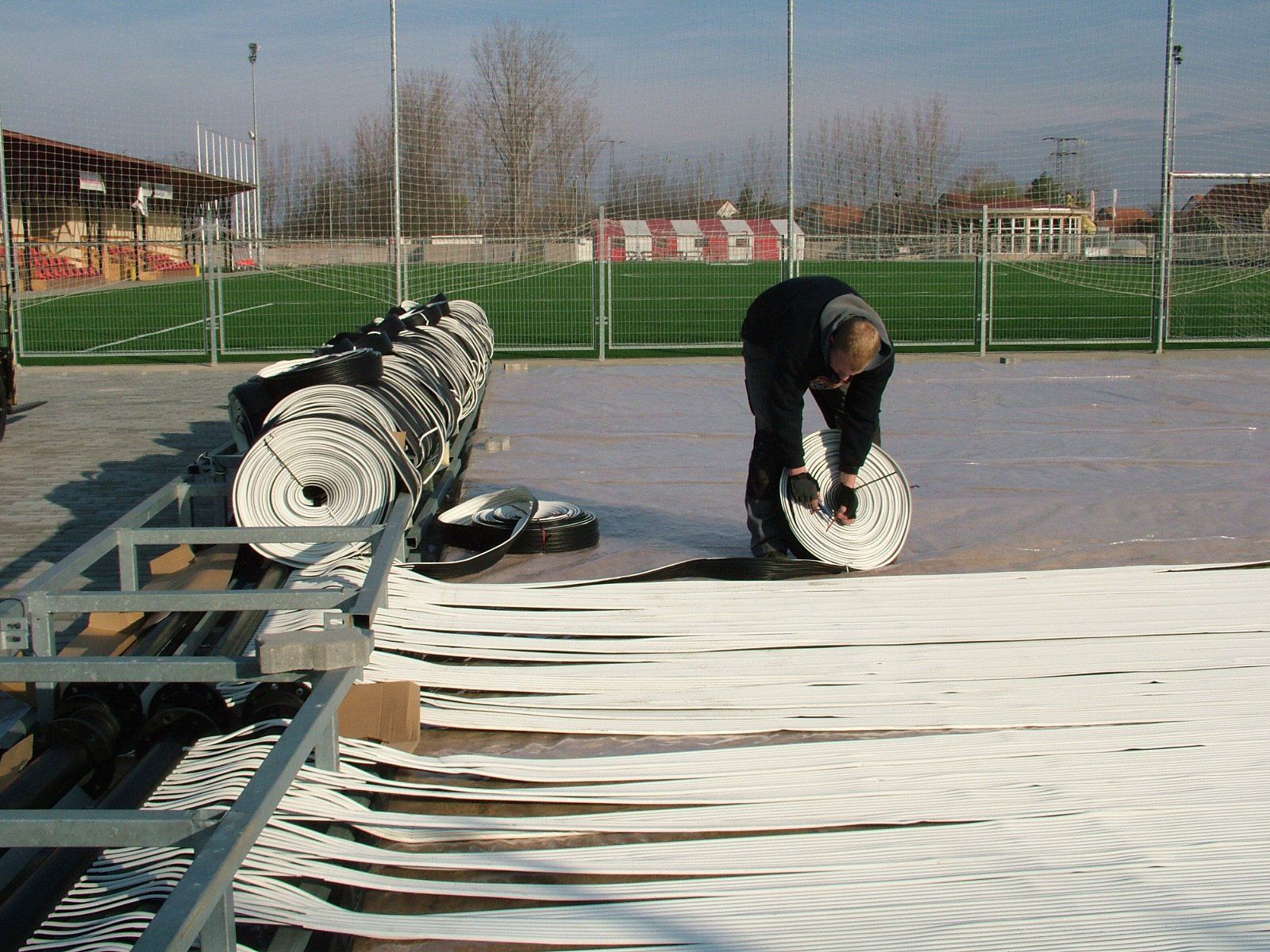

EPDM Ice Floor (white)

Button
Button

We also offer double usability

Button
Button

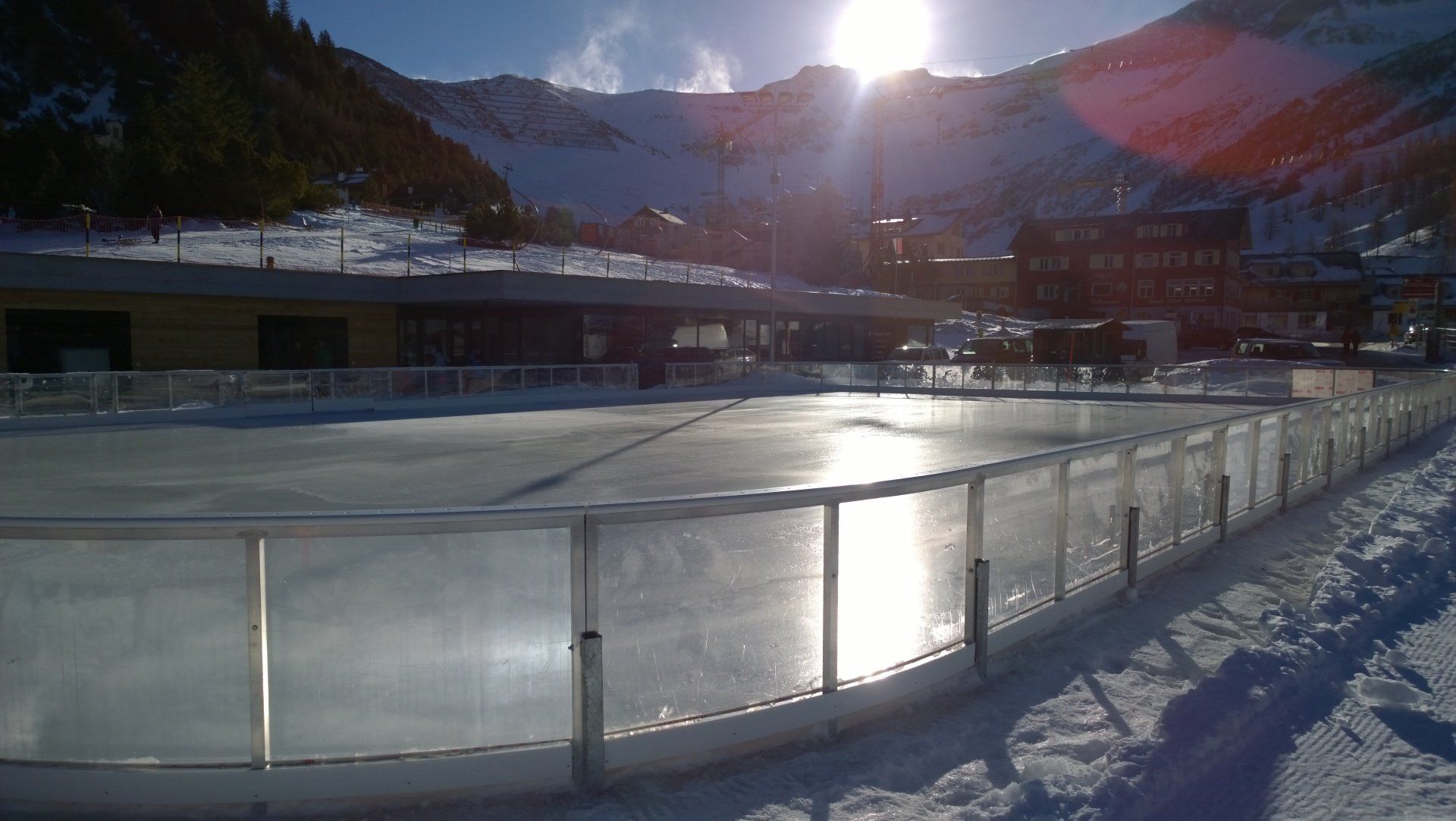

Dashboard

from simple to Luxury

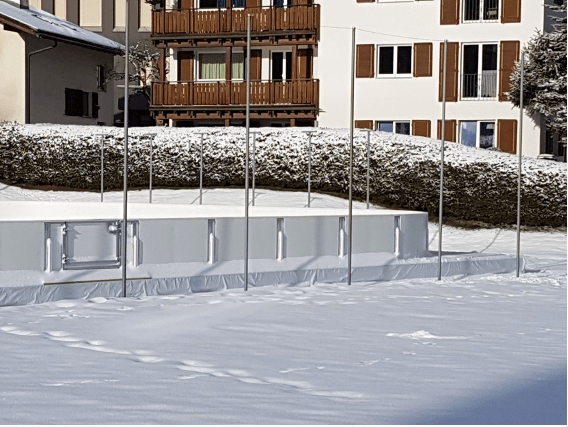

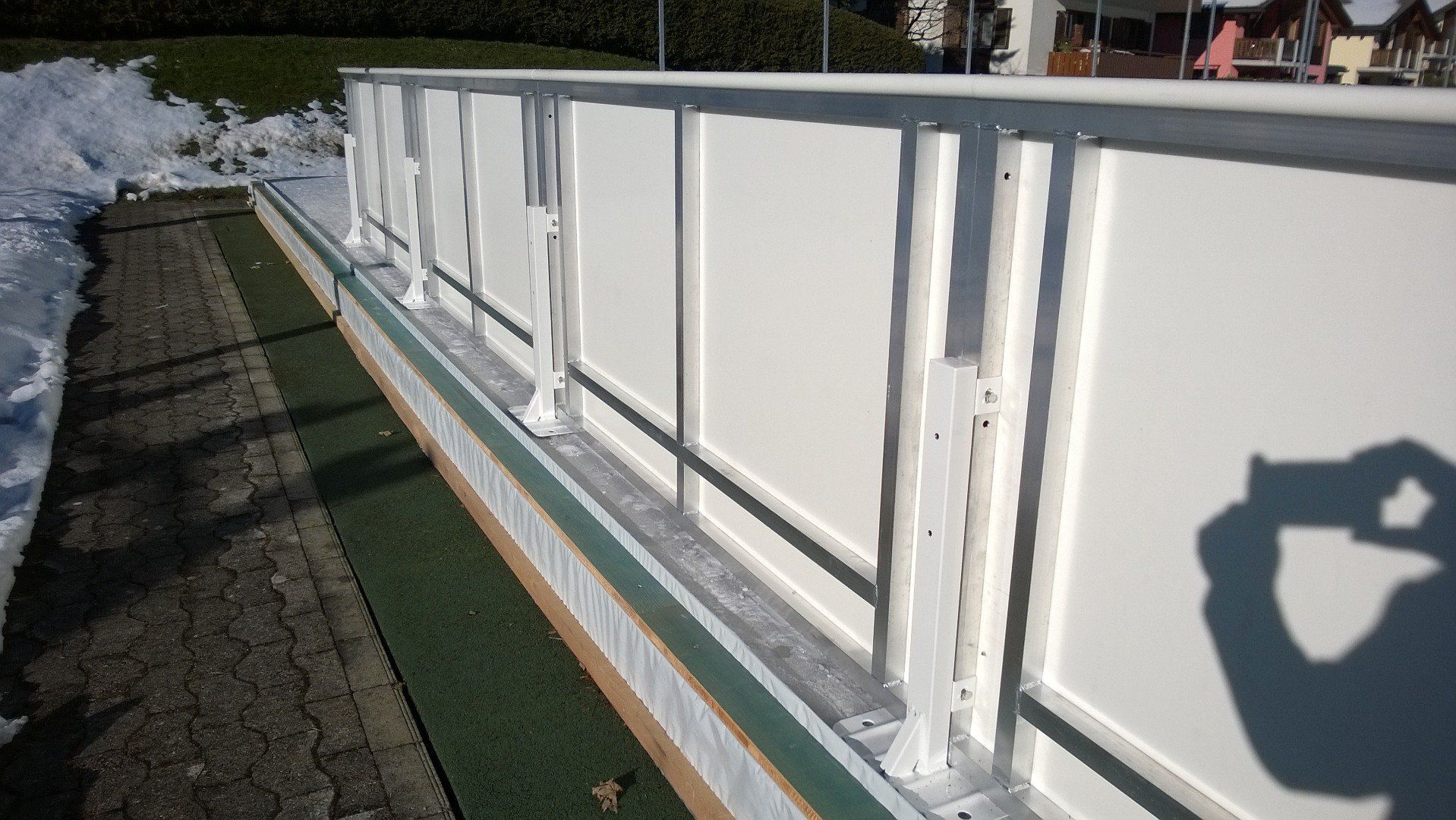

The Solkav PREMIUM Boards are completely modular to customize exactly to all requirements of the client for his fun board without extra cost:

1. Board structure:

2. Feet/Posts system: backside white – stick inside (visually hidden)– fixed post

3. Guided Handrail technology: white, blue, oak – wood

4. Backside panelling

5. Advertisement fixing and protection system

6. Integrated Lighting system

7. Net and lamp post system

Button
Button
Button
Button
Button
Button

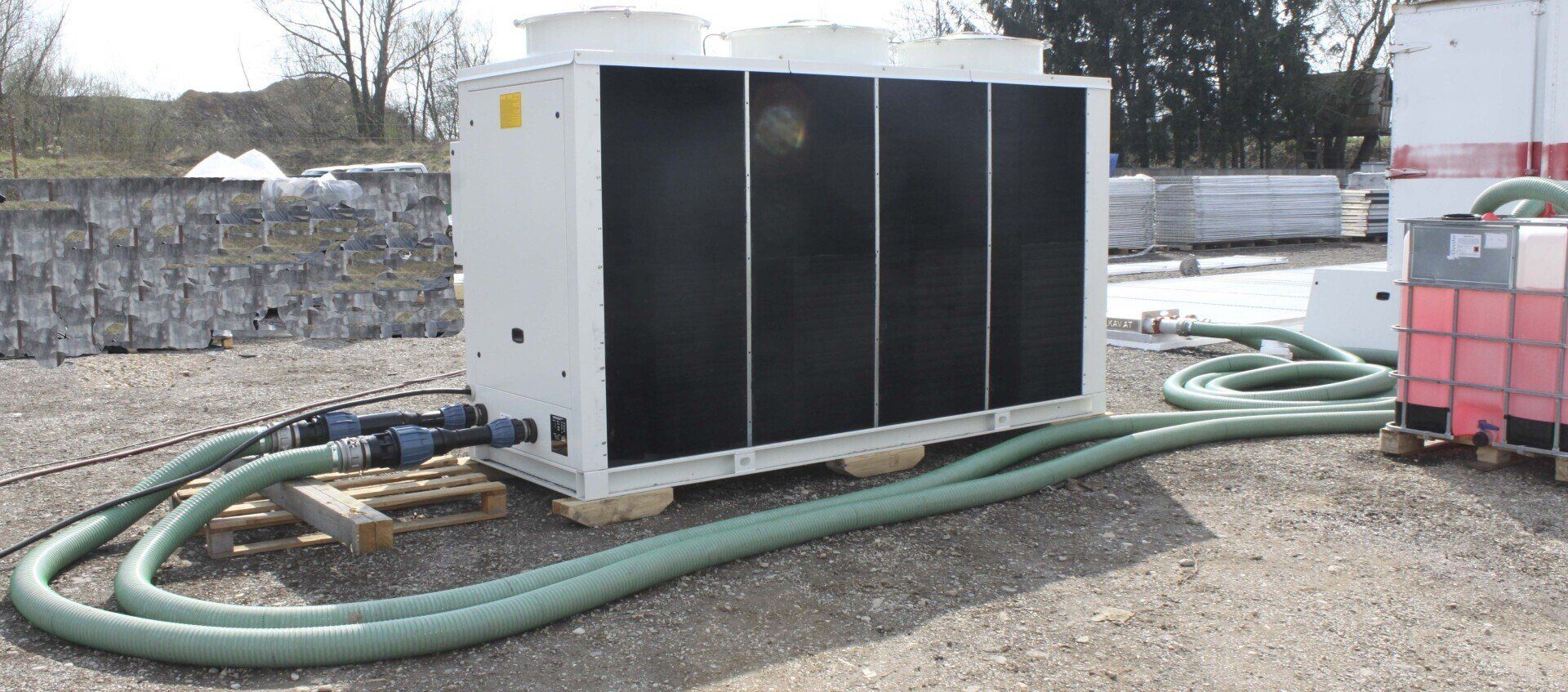

Mobile or permanently installed cooling for any outside temperature

Chillers are in standard air cooled and available in all sizes from 15 KW or 50 m² Ice rink to 540 KW for 1.800 m² Ice Rink.

Chilling

mobile or fixed installed, for any outside temperature

Freon: R 410 A

max.possible glycol outflow temperature: -14 ° C to keep ice in any case

High quality compressor: Copeland Scroll or Bitzer

Air cooled

With integrated pump

Remote maintenance worldwide thanks to the Internet controller interface

Standard components enable maintenance company to be freely selected

Electronic multi-way valves for energy efficiency

Plate evaporator for energy-saving operation

Connection infrastructure such as an open mixing tank system, flex pipes, and fittings; make our system plug and play ready for use as a mobile solution. In fixed installations, the lines can be adapted to the needs of the customer.

Button
Button
Button

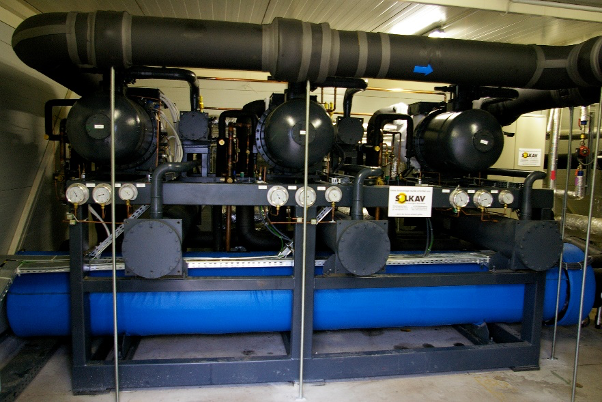

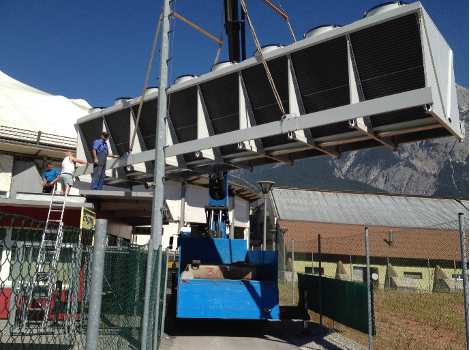

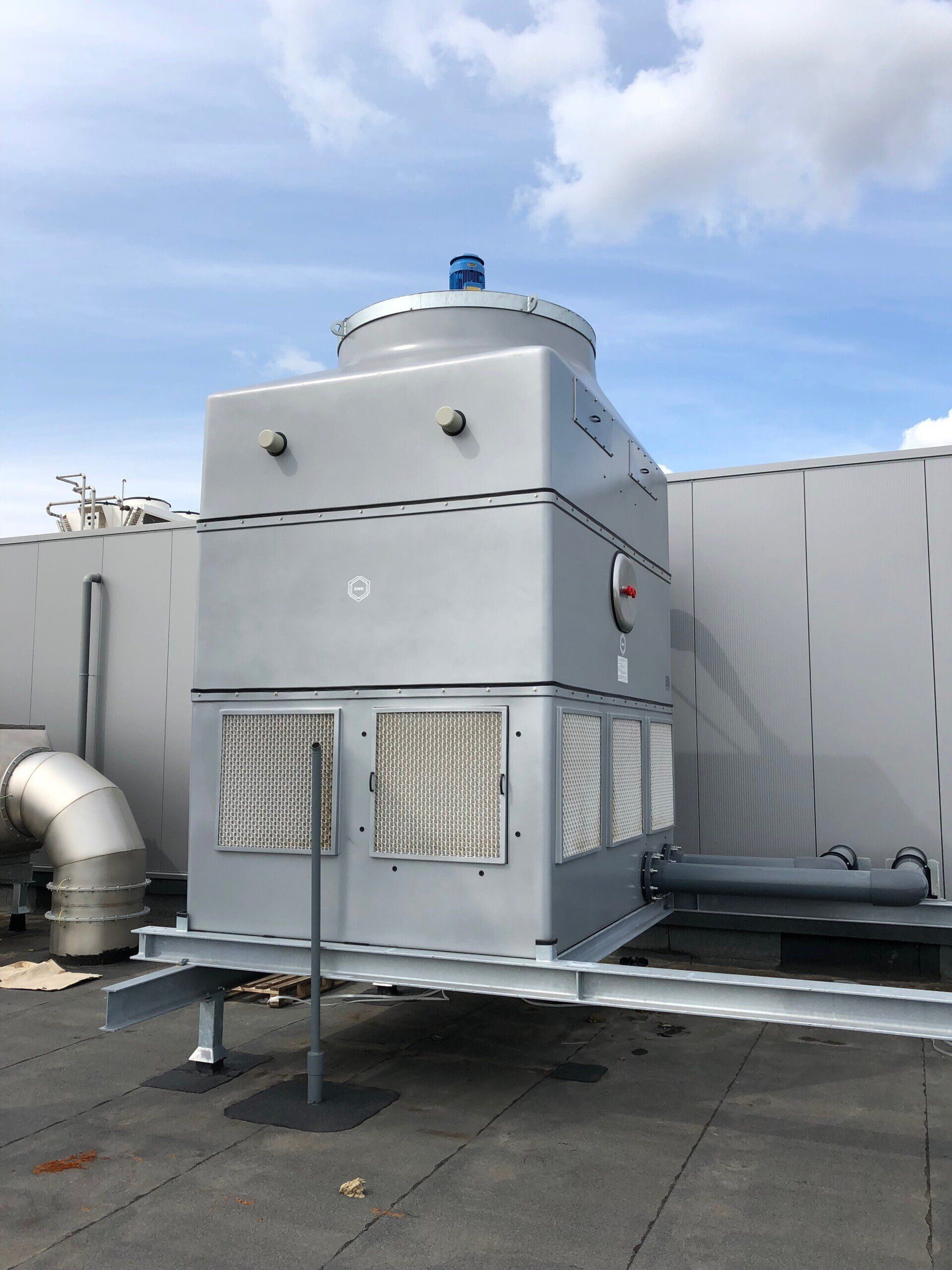

We specialize in individual solutions such as: divided systems, water condensers, water towers, container solutions

Green solutions: heat recovery using a heat pump and solar system integration (e.g. sports solar)

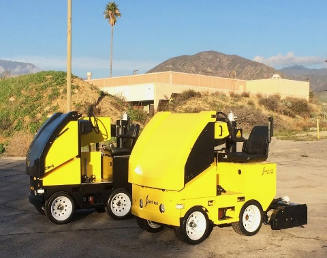

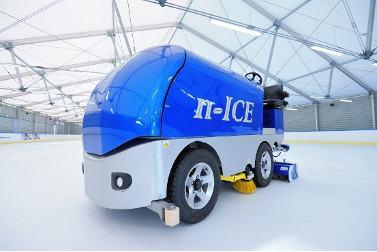

Ice Resurfacing: Manual or Ice Resurfacing machinery

Fit for purpose (Perfect Ice) + Price attractive for each Budget

Ice Resurfacing for medium size Ice Rinks is a need but has not an end in itself! Ice Resurfacers are expensive in purchase/rent in relation to the size of the Ice Rink and the time of use. Doing nothing is also not an option. What are the solutions to have good ice surface and less cost?
